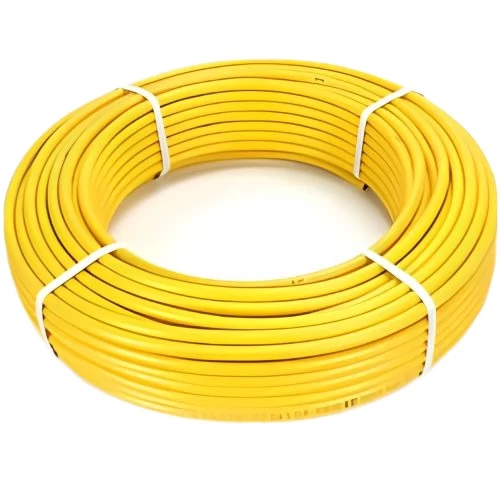

Neproplast HDPE Pipes PE 80 Pressure 10 Bar Outside Diameter 90 mm Thickness 6.7 mm Color Yellow
(818 Product Views)
HDPE Pipes Neproplast brand, PE80, Pressure 10 bar, Outside diameter 90 mm, Thickness 6.7 mm, Color Yellow, used in gas applications. It is made of high-density polyethylene. It does not need to be painted, one of its properties is resistance to heat and ultraviolet rays, resistance to bacteria and insects, it bears high pressure, it is also characterized by light weight and strength, easy to shape according to the customer’s request, the pipes can be connected securely and solidly by electric welding.
Product description
HDPE Pipes Neproplast brand , used in gas applications. It is made of high-density polyethylene. It is also characterized by light weight and strength. It is resistant to bacteria and insects. It bears high pressure. It is resistant to heat and ultraviolet rays. It does not need painting. It is easy to form according to the customer’s request. The pipes can be connected in any way Safe and durable by electric welding.
- Outside diameter: 90 mm
- Pressure: 10 Bar
- Length: Available in rolls of 100 metres
- Thickness: 6.7 mm
- Weight: 1.770 kg / meter
- Color: Yellow, other colors are available on request
- Material: PE80
- Standard dimentions ratio (SDR): 13.6
- Sigma : 6.3
- Minimum required strength (MRS) : 8
- Series (S) : 6.3
