CU/LSHF Flexible Copper Wire, 35mm2, 450/750V, Green/Yellow Color, 100 yards Length | RESCAB

CU/LSHF Flexible Copper Wire, 35mm2, 450/750V, Green/Yellow Color, 100 yards Length | RESCAB

(301 Product Views)

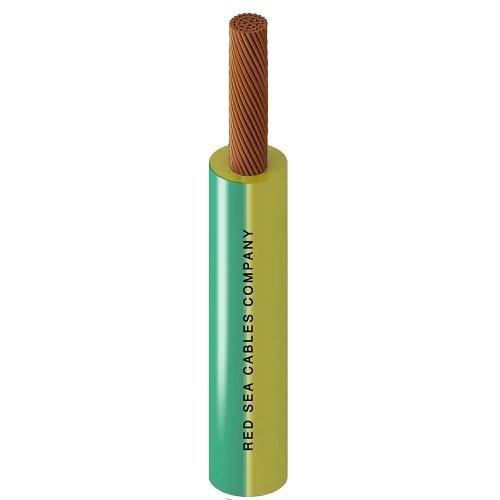

Flexible electrical copper wire (CU/LSHF), 35mm2 size, 450/750 volts, Green/Yellow Color, Red Sea Cables, suitable for a wide range of applications, from high-rise buildings to industrial facilities.

in stock

Call Supplier

About Product

Product description

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

Wire Type: H07Z-K
Conductor: Flexible Copper (Class 5)
Insulation Material: LSHF (Low Smoke Halogen Free)
Voltage: 450/750 volts
Max. Temperature: +90°C
Conductor Size (Cross-Sectional Area): 35 mm2
Nominal Insulation Thickness: 1.2 mm
Approx Overall Diameter: 10 mm
Max DC Conductor Resistance at 20°C: 0.554 ohm/km
Standard Length: 100 Yards (91.4 meter) / Coils
Insulation Color: Green/Yellow
Standard: BS EN 50525-3-41
