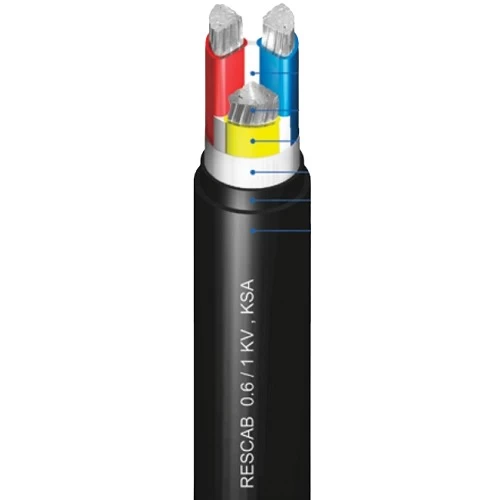

Stranded aluminium electric cable (AL/XLPE/PVC), 3 core, 120 mm, low voltage 0.6/1kV. Insulated with XLPE to withstand temperatures up to 90°C. PVC sheath provides additional protection against UV rays and external factors. Produced by Red Sea Cables.


in stock
 Call Supplier
general.mada
general.master_card
general.visa
general.tamara

Product description

Stranded aluminum power cable (AL/XLPE/PVC), Produced by Red Sea Cables (RESCAB) Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, it is sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, and corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes, and conductor ratings to meet diverse application requirements.

  • Conductor: Stranded Aluminium
  • Insulation Material: XLPE (Cross-Linked Polyethylene)
  • Outer Sheath: PVC
  • Voltage: 0.6/1kV
  • Number of Cores: 3
  • Conductor Size (Cross-Sectional Area): 120 mm2
  • Number of wires: 19
  • Nominal Insulation Thickness: 1.2 mm
  • Nominal Sheath Thickness: 2.1 mm
  • Approx Overall Diameter: 41 mm
  • Max DC Conductor Resistance at 20°C: 0.253 ohm/km
  • Weight: 4200 kg/km
  • Standard Length: 500 meters
  • Phase Core Color: Red, Yellow, Blue
  • Standard: IEC 60502-1
