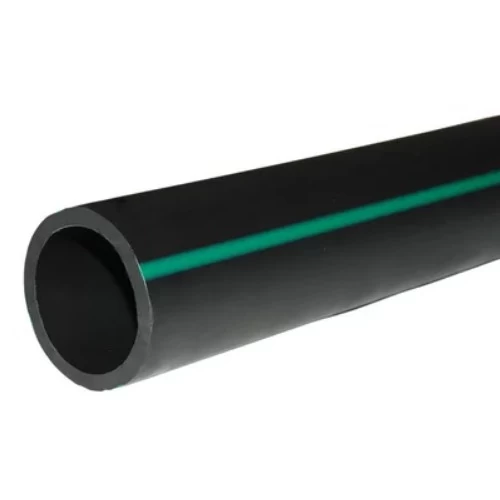

![HDPE Plastic Pipe Pressure 4 Bar [PE 80] Size (OD) 280 mm SDR 33 Color Black | Almona Company](https://youmats-media.s3.me-central-1.amazonaws.com/165316/conversions/HDPE-Black-size_500_500.webp "HDPE Plastic Pipe Pressure 4 Bar [PE 80] Size (OD) 280 mm SDR 33 Color Black | Almona Company")
HDPE Plastic Pipe Pressure 4 Bar [PE 80] Size (OD) 280 mm SDR 33 Color Black | Almona Company
(352 Product Views)
Price Included Vat 15%
HDPE Plastic pipe for irrigation systems, outside diameter 280 mm, (SDR 33) material grade PE 80, pressure 4 bar, according to DIN 8074/8075 standard, produced by Al Mona factory. made of (high-density polyethylene) It provides high resistance to chemicals and ultraviolet rays, making it suitable for outdoor uses without being affected by weather factors, black color.
Product description
HDPE pipe for irrigation systems, produced by Al-Mona Company. HDPE pipes made of (high-density polyethylene) are the perfect choice for efficient liquid transportation due to their unique advantages that guarantee durability and excellent performance. They can withstand high water pressure, making them ideal for water networks that are subjected to high pressures, also have a 50 years free maintenance lifetime. In addition, they provide superior protection against external factors.
- Outside diameter : 280 mm
- Thickness : 8.6 mm
- Weight : 7.40 kg/m
- Standard dimensional ratio : SDR 33
- Pressure : 4 bar
- Pipe Series (S) : 16
- Material grade : PE 80
- Color : Black
- Minimum Required Strength (MRS) : 8 MPa
- Design stress (σs) : 6.4 MPa
- Design safety factor : C=1.25
- Length : 12 meters (available in different lengths upon request)
- Manufactured according to : DIN 8074/8075
